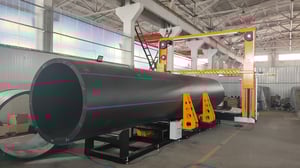

PolySaw1600_Egypt

PolySaw1600/65

Hydraulically operated low-profile pipe saw specifically produced for the preparation of pipe segments in HDPE

workshop_pipe_saws_polysaw_1600_front_view
PolySaw1600/65

Hydraulically operated low-profile pipe saw specifically produced for the preparation of pipe segments in HDPE, PP and other thermoplastic materials, used for the production of bends, tees and other fabrications.

Capacity 630 to 1600mm OD / 24" to 65" IPS. Cutting angle is up to 67 degrees. Lowering rate of saw is hydraulically controlled, as are the top-mounted V-clamps used to hold pipe segments in place.

GET A QUOTE
630mm to 1600mm
24" to 63"

WHAT'S INSIDE

GENERAL INCLUSIONS
  • → Cutting range 630 OD / 24" IPS to 1600 OD 63" IPS
  • → 67 degree maximum cutting angle allows production of segments for bends, tees and Y-branch tees.
  • → Hydraulic opening and lock down
  • → Cutting feed is hydraulically controlled.
  • → Infrared positioning.
  • → Special saw blade available for thick walled pipe.
  • → Angular cutting error equal to or less than 1 degree.
  • → Speed of saw blade 250 m/min.
  • → Safety:
    • ↳ Emergency stop at operation panel.
    • ↳ Before saw blade is running，it alarms with both a flashing light and audible alarm for a few seconds.
    • ↳ Equipped with saw blade detection device. Once saw blade is broken, machine will stop immediately.
    • ↳ Saw blade guides expand and contract automatically once pipe diameter and fitting types has been selected, assuring close contact with pipe for blade protection.
    • ↳ Saw guide travel is limited by proximity switches.
    • ↳ Pipe or fitting is locked by hydraulic controlled bar - easy, safe and reliable.
    • ↳ Low profile design, providing easy and safe reception of cut pieces.
  • → Weight 9,000kg
  • → Please note technical specifications of worldpoly machines may change without notice
ELECTRICS
  • → - All electric operating buttons and handles are operated at 24DCV.
  • → 400 volt 3 phase 50 Hz (5.5 kw 13.4 A). 480 volt 3 phase 60 Hz option.
WARRANTY
  • → Genuine 12 month international warranty.
