8" to 16"

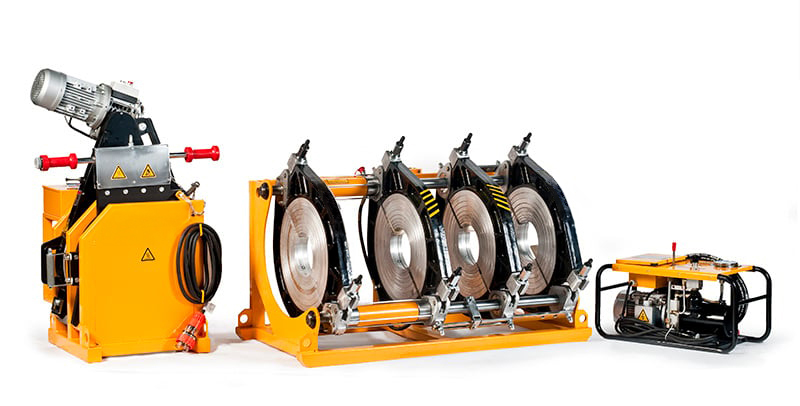

WP16
Hydraulically operated butt-welding machine suitable for PE pipes and fittings from 8" to 16" IPS
spare parts
Parts available
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
- Welding range 8" to 16" IPS DR 9 (290 psi) to DR 17. 8" & 10" DR 9 and 11 only
- Welds according to both high & low pressure standards for ASTM F2620 and ISO 21307:2017
- Included as standard:
- Main frame, including 4 light weight pressure-cast alloy main clamps of 16" diameter
- Removable cast Aluminium electric facing tool with current overload protection
- Electrohydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases
- PTFE coated heating plate with electronic temperature control. Heating plate automatically separates from pipe ends after heating
- Stand for heating plate and facing tool
- Tool box including tools, bolts, selected spare parts, etc.
- Wired ready to accept Weldpoly or other suitable data logger
notes
HYDRAULICS
- German hydraulic seals
- Total cylinder section: 22.39 cm², maximum pump pressure 160 bar
ELECTRICS
- 240 volt 50/60 Hz 1 phase (6.2 kw 19.8 A)
- Minimum generator required: 240 volt 8 KVA. Provide full machine details to generator supplier before purchase
options
- 2-piece clamps: 16", 14", 12", 10" & 8" IPS
WARRANTY
Spare parts warranty:
- 24 months for equipment supplied in Australia
- 12 months for equipment supplied internationally
