630mm to 1600mm
24" to 63"

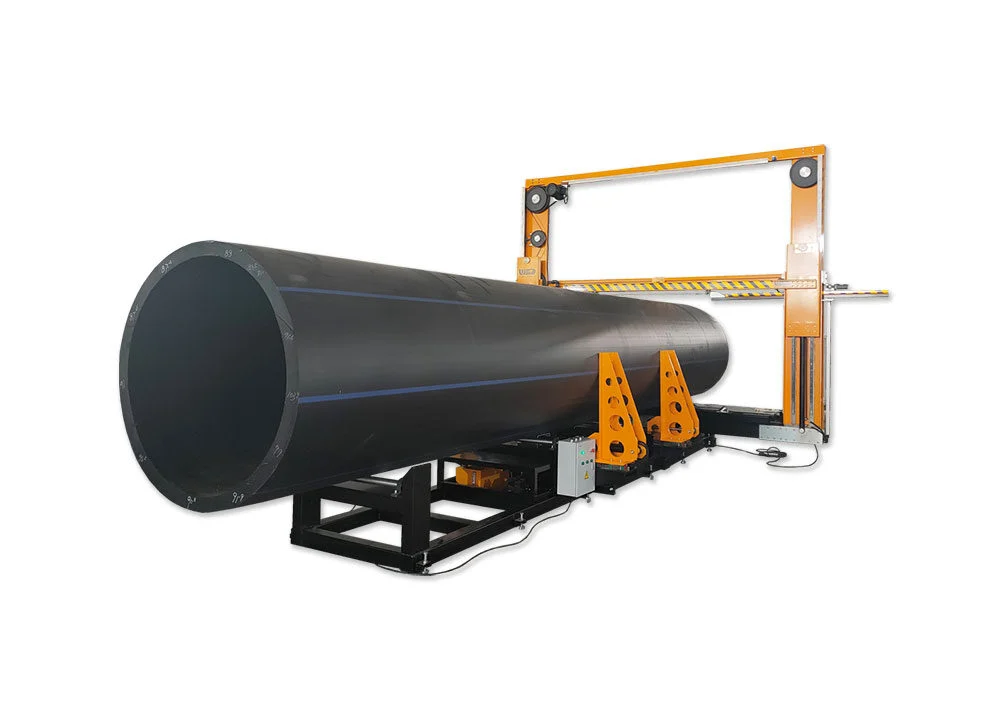

PolySaw1600/65
Hydraulically operated low-profile pipe saw specifically produced for the preparation of pipe segments in HDPE
spare parts
Parts available
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
- Cutting range 630 OD / 24" IPS to 1600 OD 63" IPS
- 67 degree maximum cutting angle allows production of segments for bends, tees and Y-branch tees.
- Hydraulic opening and lock down
- Cutting feed is hydraulically controlled.
- Infrared positioning.
- Special saw blade available for thick walled pipe.
- Angular cutting error equal to or less than 1 degree.
- Speed of saw blade 250 m/min.
- Safety:
- Emergency stop at operation panel.
- Before saw blade is running, it alarms with both a flashing light and audible alarm for a few seconds.
- Equipped with saw blade detection device. Once saw blade is broken, machine will stop immediately.
- Saw blade guides expand and contract automatically once pipe diameter and fitting types has been selected, assuring close contact with pipe for blade protection.
- Saw guide travel is limited by proximity switches.
- Pipe or fitting is locked by hydraulic controlled bar - easy, safe and reliable.
- Low profile design, providing easy and safe reception of cut pieces.
notes
HYDRAULICS
ELECTRICS
- All electric operating buttons and handles are operated at 24DCV.
- 400 volt 3 phase 50 Hz (5.5 kw 13.4 A). 480 volt 3 phase 60 Hz option.
options
WARRANTY
- Genuine 1 year warranty on parts
