63 to 1200mm
2" to 48"
PolySaddle1200/48

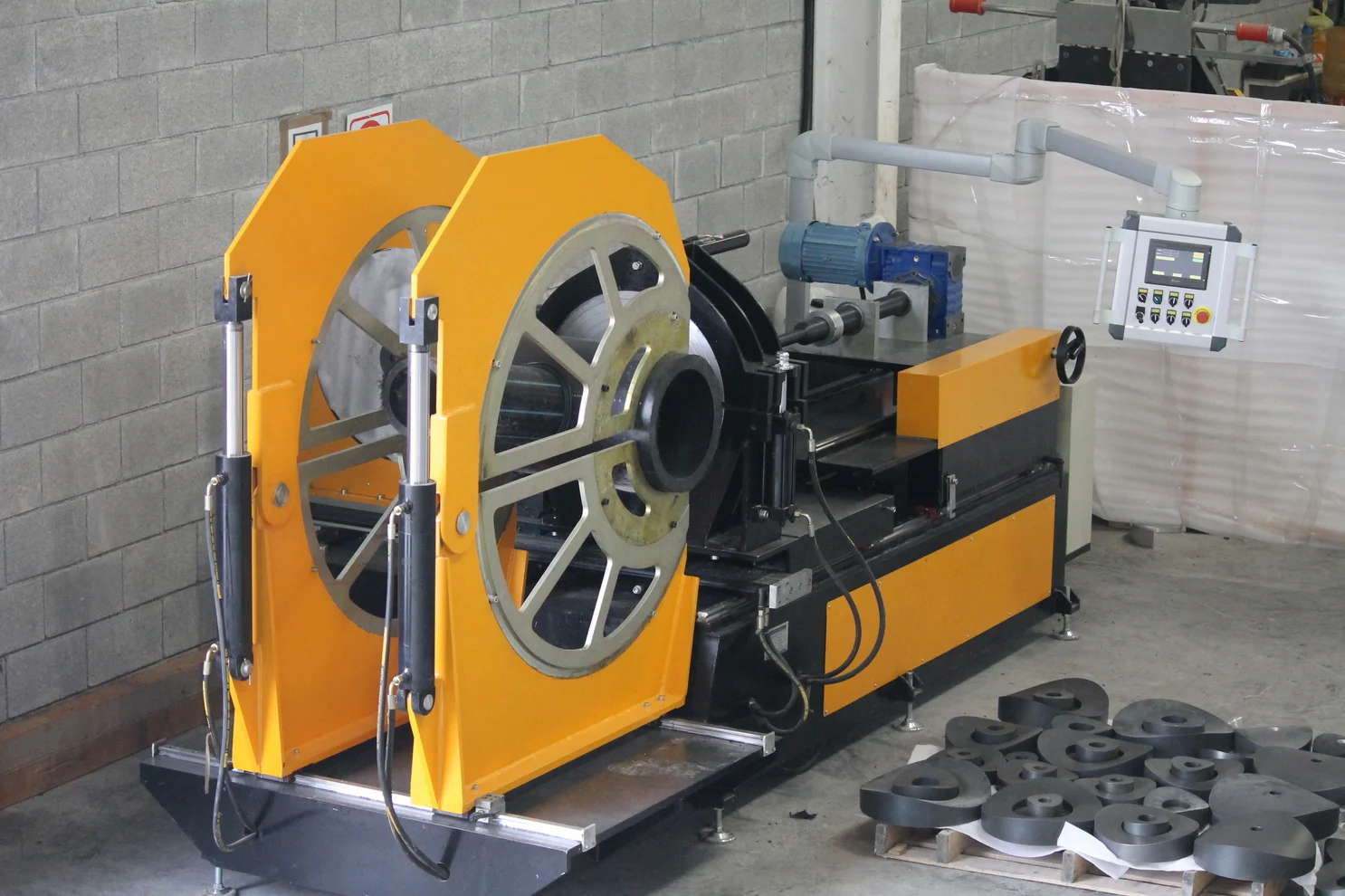

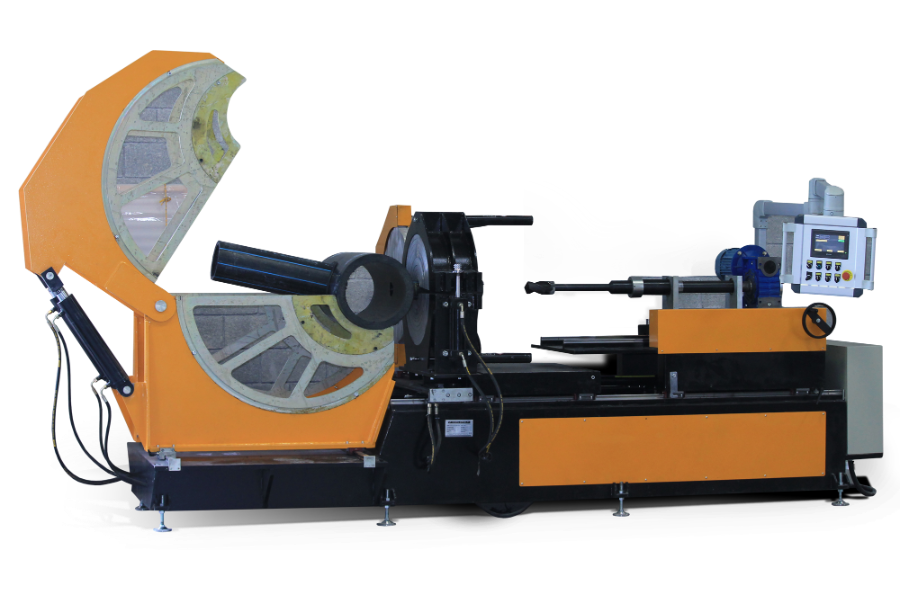

Hydraulically operated saddle fusion machine for the production of 90-degree reducing tees from standard PE pipe sections.
Details
- Cutting range 200 to 1200mm OD.
- 67 degree maximum cutting angle allows production of segments for bends, tees and Y-branch tees.
- Hydraulic lock/release of main pipe
- Cutting feed is hydraulically controlled.
- Laser blade positioning.
- Special saw blade available for thick walled pipe.
- Angular cutting error equal to or less than 1 degree.
- Speed of saw blade 250 m/min.
- Emergency stop at operation panel.
- Before saw blade is running，it alarms with both a flashing light and audible alarm for a few seconds.
- Equipped with saw blade detection device. Once saw blade is broken, machine will stop immediately.
- Saw blade guides expand and contract automatically Once pipe diameter and fitting types has been selected, assuring close contact with pipe for blade protection.
- Saw guide travel is limited by proximity switches.
- Pipe or fitting is locked by hydraulic controlled bar - easy, safe and reliable.
- Low pipe bed design, providing easy and safe reception of cut pieces.
- Weight 7,000kg
- Please note technical specifications of Weldpoly machines may change without notice
notes
HYDRAULICS
ELECTRICS
- All electric operating buttons and handles are operated at 24DCV.
- 400 volt 3 phase 50 Hz (5.5 Kw 4.2 A). optional 480/3/60 or 220/3/60.
WARRANTY
- Genuine 24 month international warranty.
