40mm to 160mm

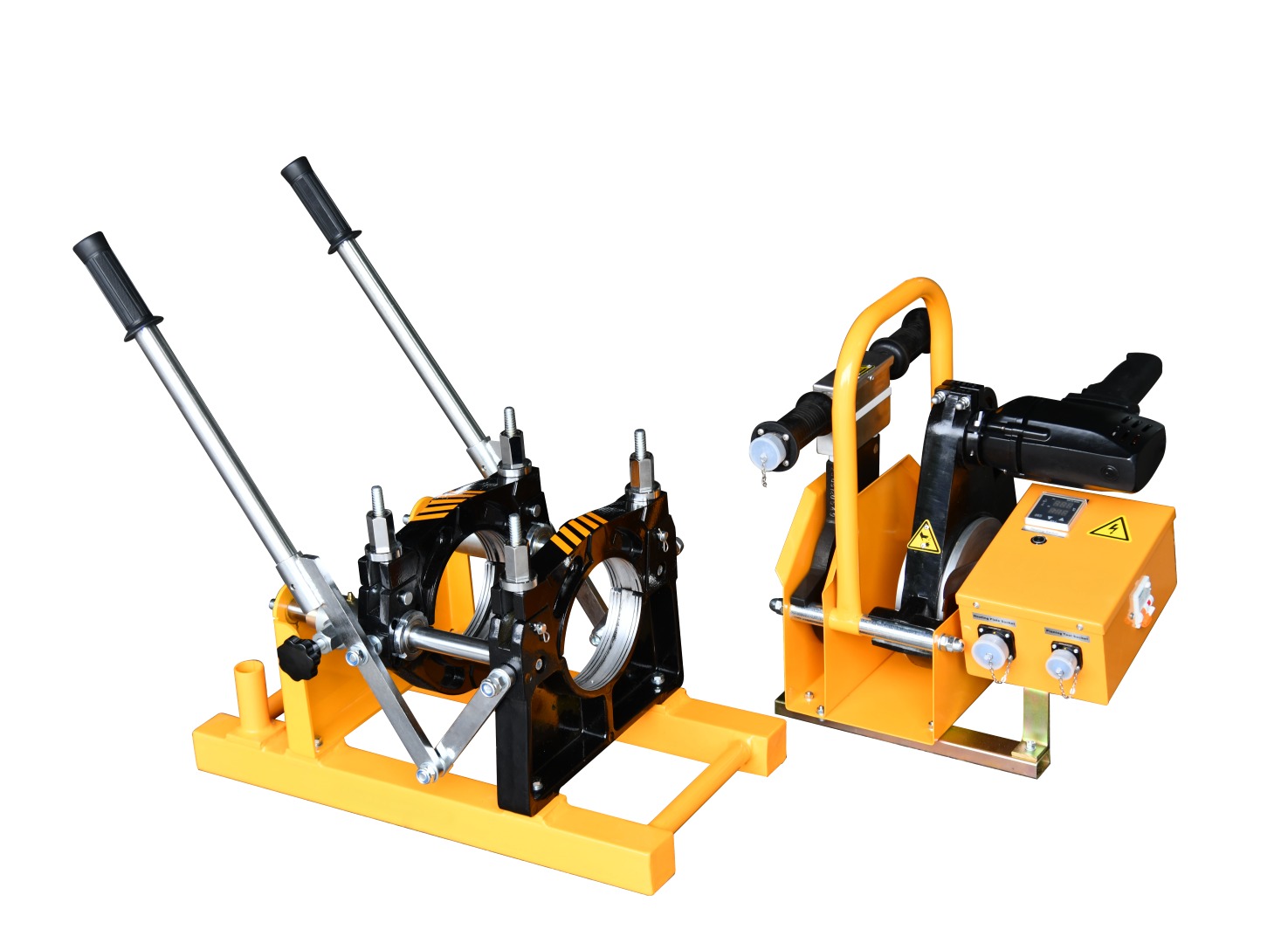

PolyBasic160
Butt-welding machine suitable for non-pressure PE and PP pipes and fittings from 40 to 160mm OD
spare parts
Parts available
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Details
- Welding range 40 to 160mm: 40 to 63mm SDR 7.4 to SDR 11. 75mm to 90mm SDR 9 to SDR 17. 110mm to 160mm to SDR 11
- Included as standard:
- Main frame includes light weight alloy main clamps of 160mm diameter
- Layer clamps 160x140, 140x125, 125x110, 110x90, 90x75, 75x63, 63x50 & 50x40mm
- Removable cast Aluminium electric facing tool
- Removable cast Aluminium PTFE coated heating plate with electronic temperature control
- Stand for heating plate and facing tool
- Manual opening of frame
notes
- This unit does not accurately read force below 20N/mpa. Drag + welding force must equal minimum 20N/mpa for accurate welding
- Not recommended for welding pipe having wall thickness less than SDR 11, in diameters 63mm OD and below
- Refer to Australian specifications, and if your intention is to weld SDR 17 'Rural' PE pipe
HYDRAULICS
ELECTRICS
- 230 volt 50/60 Hz 1 phase (1.75 kw 9.0 A)
- Requires generator with a minimum 230 volt 2.3 KVA. We recommend you provide full machine details to generator supplier before purchase
options

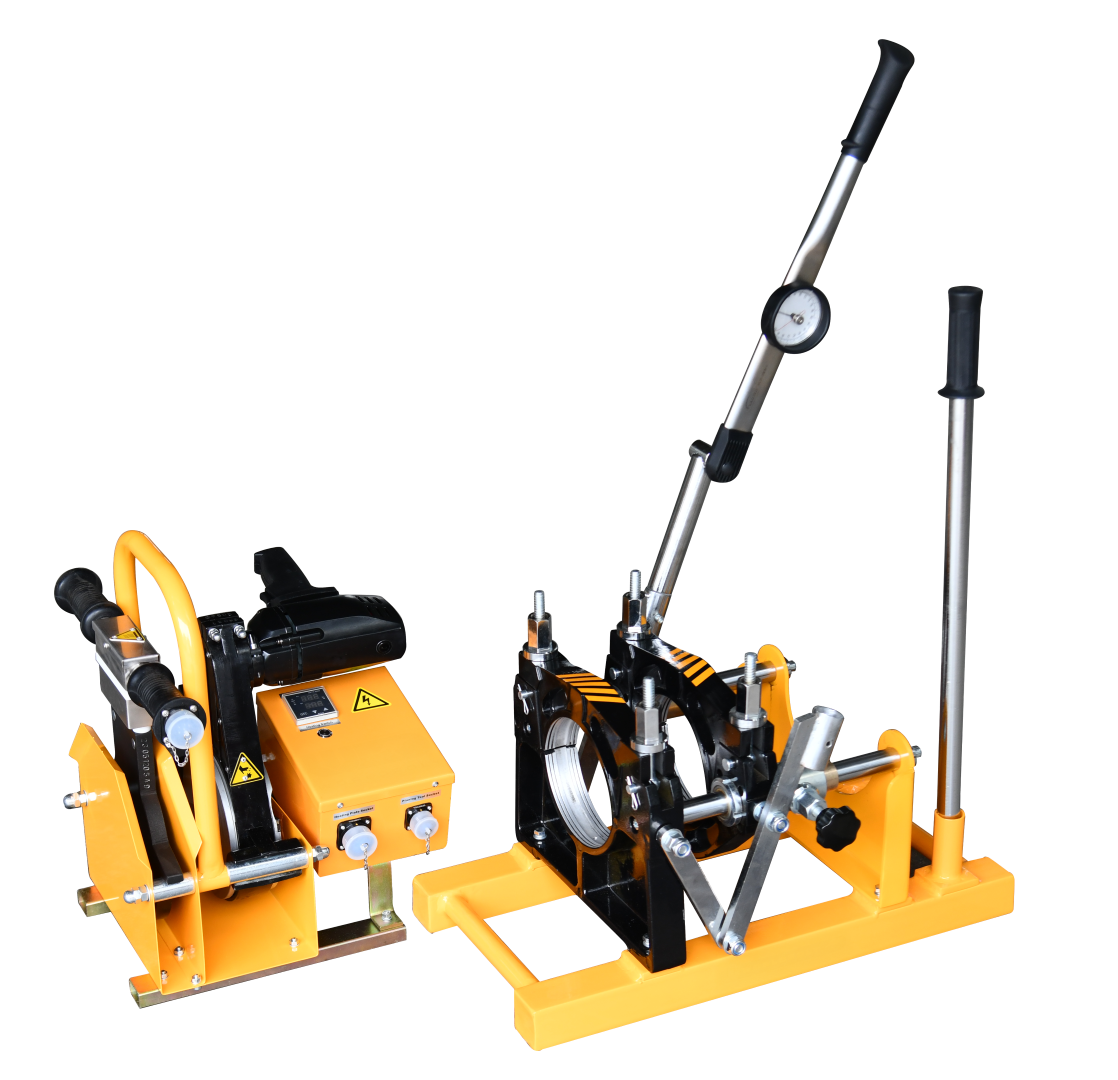

- Torque wrench for measurement of welding force
WARRANTY
Spare parts warranty:
- 24 months for equipment supplied in Australia
- 12 months for equipment supplied internationally
