914mm to 1600mm
36" to 63"
Field63

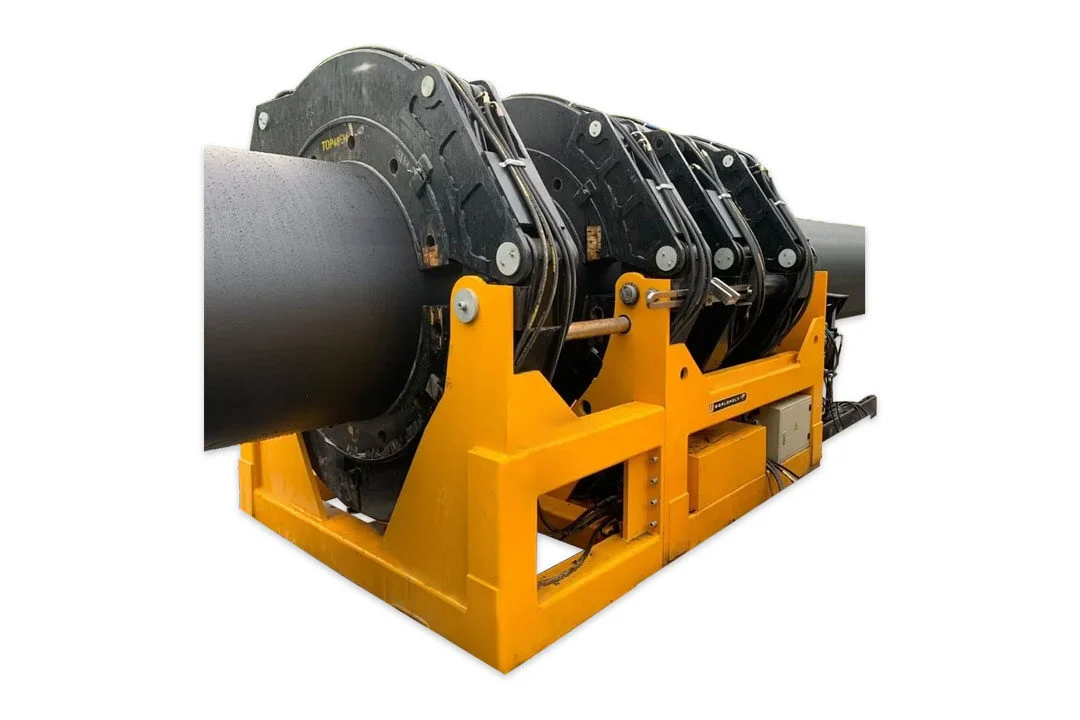

Hydraulically operated butt-welding machine suitable for HDPE pipes and fittings from 36" to 63" OD.
Details
- Welding range 36" to 63" IPS to DR 9 with optional clamp inserts
- Genuine 1 year international warranty
- Tablet controlled CNC operation. Enter welding standard, pipe OD and SDR, then time, temperature and pressure are automatically controlled
- 20,000+ weld data logging
- Heating plate is automatically separated from the pipe at the end of the heating cycle
- Electrohydraulic pump with controls and accumulator are mounted on the main frame. Includes countdown timers for heating and cooling phases
- Removable steel electric facing tool with current overload protection
- Aluminium PTFE coated heating plate with electronic temperature control. Heating plate automatically releases from pipe ends after heating.
- Stand for heating plate and facing tool
- Tool box including tools, bolts etc.
- Please note technical specifications of Weldpoly machines may change without notice
notes
HYDRAULICS
- Total cylinder section: optional 68.7 cm² or 95.4 cm²
ELECTRICS
- 400 volt 50/60 Hz 3 phase (66 kw 107 A) alt 440 volt 3 phase 60 hz
- Minimum generator 400 volt 80 kVA. Check with your generator supplier for suitability
WARRANTY
- 400 volt 50/60 Hz 3 phase (66 kw 107 A) alt 440 volt 3 phase 60 hz
- Minimum generator 400 volt 80 kVA. Check with your generator supplier for suitability
