1600mm to 2500mm
63" to 98.4"

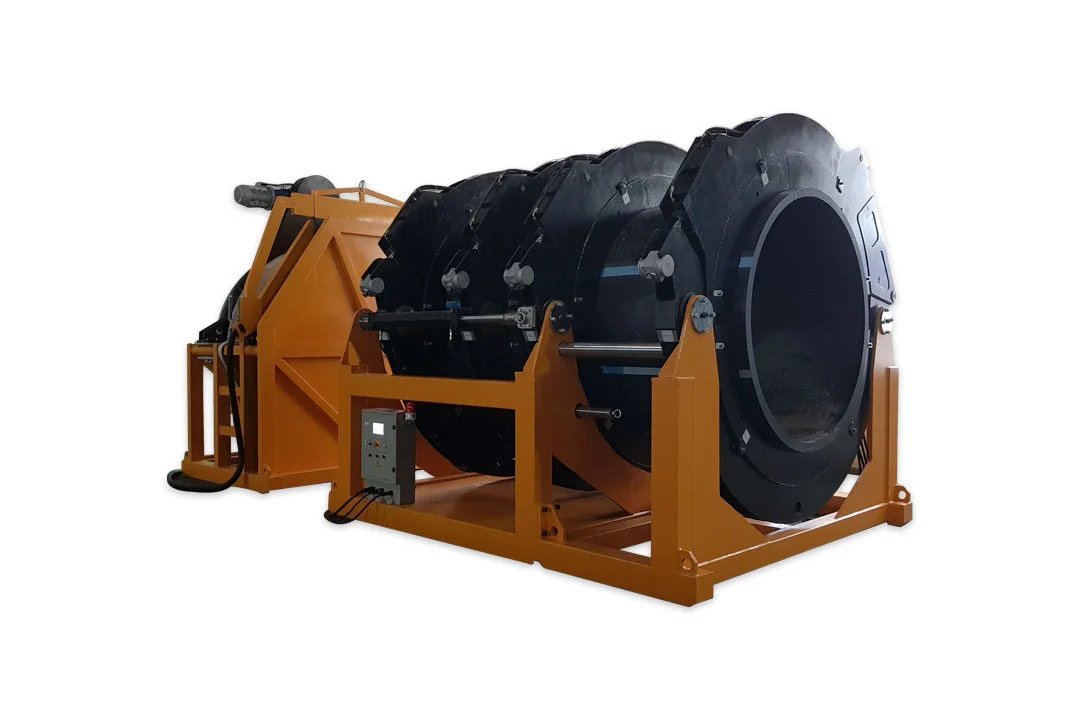

Field2500 Hydra
Hydraulically operated butt-welding machine suitable for PE and PP pipes and fittings to 1600 - 2500mm/ 63 - 98.4"
Details
- Welding range 1600mm to 2500mm, alternatively 100" IPS, SDR 21 to SDR41.
- Tablet operated with CNC control of temperature, time and pressure functions. Operator can move around the machine during welding.
- Research, design and development by Weldpoly Australia.
- Commissioning, training and warranty by Weldpoly Australia
- Includes 20,000+ weld data logger.
- Removable cast Aluminium electric facing tool with current overload protection.
- Removable cast Aluminium PTFE coated heating plate with electronic temperature control.
- Stand for heating plate and facing tool.
- On-board electrohydraulic pump with controls, accumulator and quick release hoses. Includes countdown timers for heating and cooling phases.
- Maximum clamping pressure 16 Mpa.
- Please note technical specifications of Weldpoly machines may change without notice. Please confirm at time of order.
notes
HYDRAULICS
- Total cylinder section 142.54cm² / 14,254mm².
ELECTRICS
- 480 volt 60 Hz 3 phase. 128 kW / 205 A.
WARRANTY
- Genuine 1 year international warranty, backed by Australian and International Law.
