1200mm to 2000mm
47.2" to 78.7"

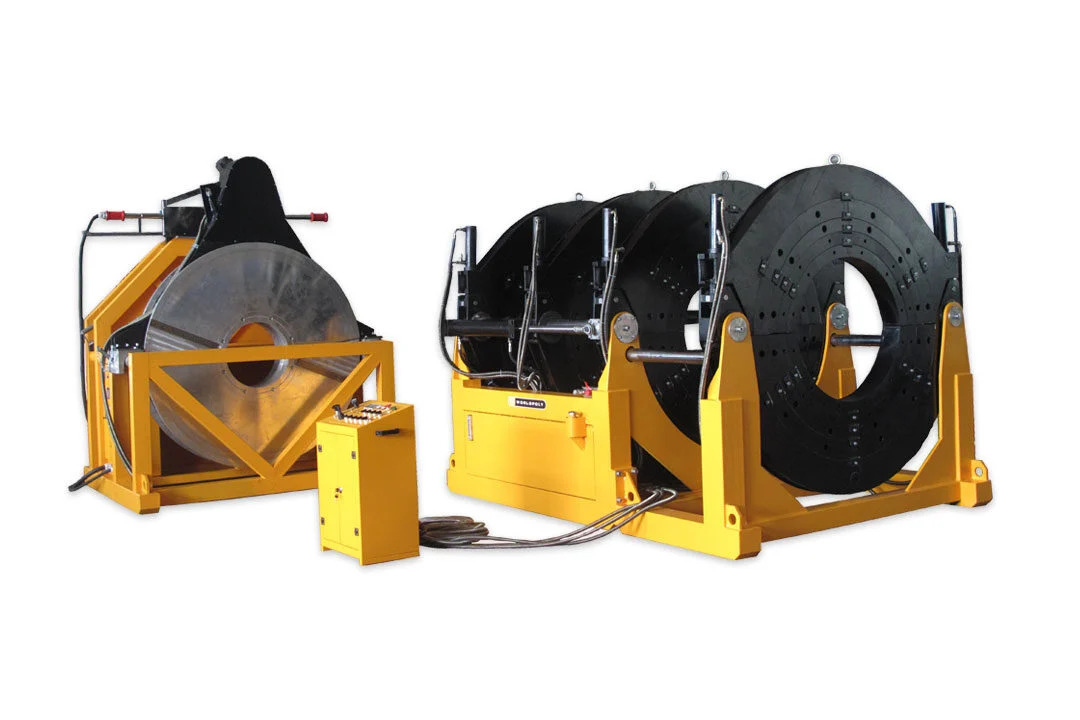

Field2000 Trench
Hydraulically operated butt-welding machine suitable for PE and PP pipes and fittings from 1200 - 2000mm/47.2 - 78.7"
Details
- Welding range 2000mm to 1200mm, alternatively 80" IPS (2032mm OD) to 54" (1371.6 mm OD), SDR 33 to SDR 17.
- Hydraulic open/close/locking of main clamps.
- CNC welding control of temperature, time and pressure.
- Mobile tablet control.
- Removable cast Aluminium electric facing tool with current overload protection.
- Removable cast Aluminium PTFE coated heating plate with electronic temperature control.
- Stand for heating plate and facing tool.
- On-board electrohydraulic pump with controls, accumulator and quick release hoses. Includes countdown timers for heating and cooling phases.
- Please note technical specifications of Weldpoly machines may change without notice.
notes
HYDRAULICS
- Cylinder section 107.54 cm², 10,754 mm².
ELECTRICS
- 400 volt 50/60 Hz 3 phase, 84.5 KW 138 Amps. Other voltages on request.
WARRANTY
