900mm to 1600mm
35.4" to 63"

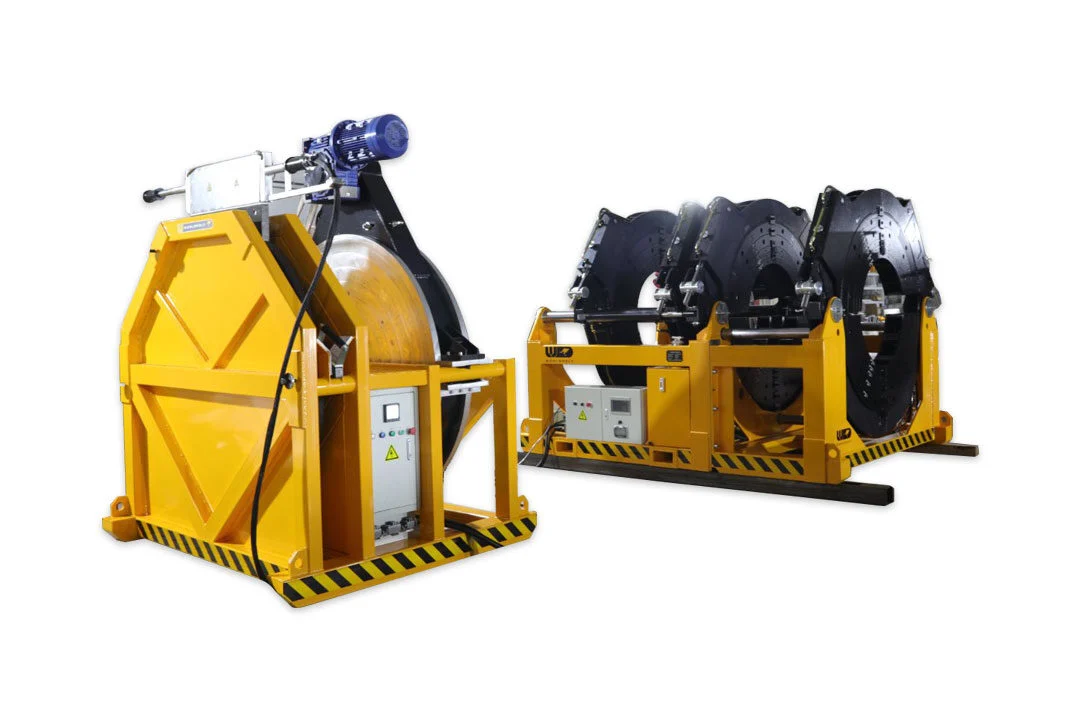

Field1600 Hydra
Hydraulically operated butt-welding machine, suitable for PE and PP pipes and fittings from 900 - 1600mm/35.4 - 63"
Details
- Standard welding range 1600mm SDR 17 to 900mm SDR 11 with optional clamp inserts
- Heating plate is automatically separated from the pipe at the end of the heating cycle.
- Electrohydraulic pump with controls and accumulator are mounted on the main frame. Includes countdown timers for heating and cooling phases.
- Removable steel electric facing tool with current overload protection.
- Aluminium PTFE coated heating plate with electronic temperature control. Heating plate automatically releases from pipe ends after heating.
- Stand for heating plate and facing tool.
- Tool box including tools, bolts etc.
- Please note technical specifications of Weldpoly machines may change without notice.
notes
HYDRAULICS
- Total cylinder section: optional 68.7 cm² or 95.4 cm²
ELECTRICS
- 400 volt 50/60 Hz 3 phase (66 kw 107 A) alt 440 volt 3 phase 60 hz
- Minimum generator 400 volt 80 kVA. Check with your generator supplier for suitability.
WARRANTY
- Genuine 1 year international warranty.
