630mm to 1200mm
24.8" to 47.2"

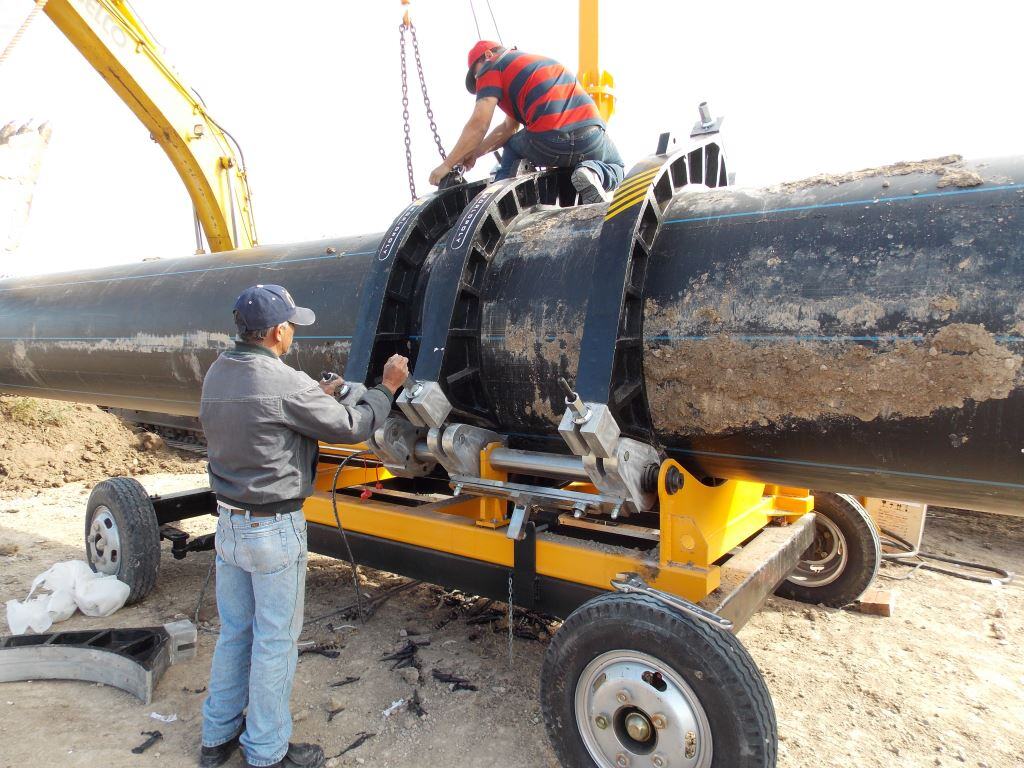

Field1200 Hydra
Hydraulically operated low force butt-welding machine provides an ideal machine for butt welding PE & PP pipes and fittings diameter 630 - 1200mm/24.8 - 47.2".
Details
- Welding range 630 to 1200mm/24" to 48" IPS to SDR 11 (PN16), 630 to 800mm to SDR 9
- Welding force maximum 1200mm/48" OD SDR 11, according to ISO 21307 and and POP003 Single Low Pressure specifications.
- Hydraulic open/close/locking main clamps.
- Tablet controlled CNC operation. Choose welding standard, pipe OD and wall thickness or SDR - Temperature, time and pressure are automatically controlled.
- Tablet controlled CNC operation. Choose welding standard, pipe OD and wall thickness or SDR - Temperature, time and pressure are automatically controlled.
- Main frame includes 4 steel, hydraulically operated main clamps of 1200mm/48" diameter.
- IPS machine includes two-piece clamps (4 circles), including 48"x42", 42"x40", 40"x36", 36"x32", 32"x28", 28"x24".
- Metric machine includes layer clamps (4 circles), including 1200x1000, 1200x900, 1200x800, 800x710, 800x630mm
- Aluminium PTFE coated heating plate and electrically operated facing tool are manually inserted and removed during welding operation.
- Electro Hydraulic pump with controls, accumulator and quick release hoses. Includes countdown timers for heating and cooling phases.
- Genuine 1 year international warranty.
- Tool box including tools, bolts etc.
- Weight 6000 kg.
- Please note technical specifications of Weldpoly machines may change without notice
notes
HYDRAULICS
- Total cylinder area: 56 cm², maximum pump pressure 180 bar. Optional 120 cm² x 200 bar.
ELECTRICS
- 400 volt 3 phase 50/60 Hz (30.6 kw, 47.6 A). Alt. 480 volt 3 phase 60 Hz.
- Minimum generator required: 400 volt 3 phase 50 hz, 32 KVA. Provide full machine details to generator supplier before purchase.
- Alternative 480 volt 3 phase 60 hz
WARRANTY
- Genuine 1 year international warranty.
