40 to 160mm
1.5" to 6.2"

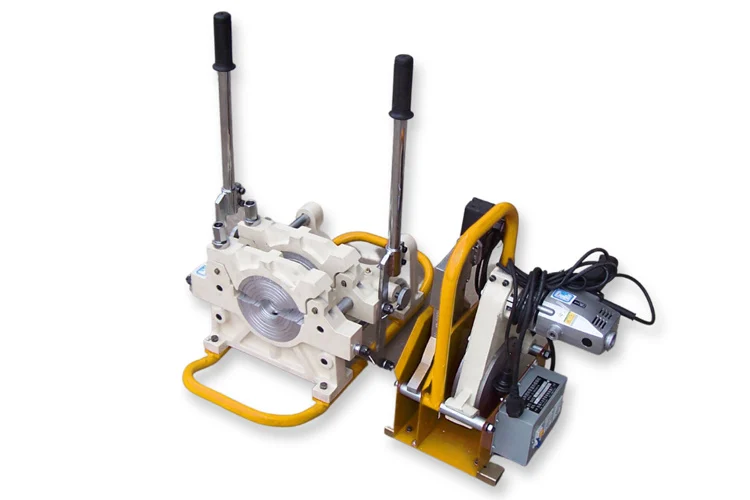

Field Basic 160
Butt-welding machine suitable for non-pressure PE and PP pipes and fittings from 40 to 160mm OD
Details
- Welding range 40 to 160mm: 40 to 63mm - SDR7.4 to SDR 11. 75mm to 90mm - SDR 9 to SDR 17. 110mm to 160mm to SDR 11
- Complete and ready to weld.
- Genuine 12 months international warranty.
- Main frame includes light weight alloy main clamps of 160mm diameter.
- Layer clamps 160x140, 140x125, 125x110, 110x90, 90x75, 75x63, 63x50 & 50x40mm.
- Removable cast Aluminum PTFE coated heating plate with electronic temperature control.
- Removable cast Aluminum electrically operated facing tool.
- Stand for heating plate and facing tool.
- Manual opening of frame. Optional torque wrench for measurement of welding force.
- Net weight 57kg
- Note - This unit does not accurately read force below 20N/mpa. Drag + welding force must equal minimum 20N/mpa for accurate welding.
- Not recommended for welding pipe having wall thickness less than SDR 11, in diameters 63mm OD and below.
- Please refer to Australian specifications , and if your intention is to weld SDR 17 'Rural' PE pipe.
- Please note technical specifications of Weldpoly machines may change without notice
notes
HYDRAULICS
ELECTRICS
- 230 volt 50/60 Hz 1 phase (1.75 kw 9.0 A).
- Requires generator minimum 2.3 KVA.
