90 to 315mm
3.5" to 12"
Fabrication315

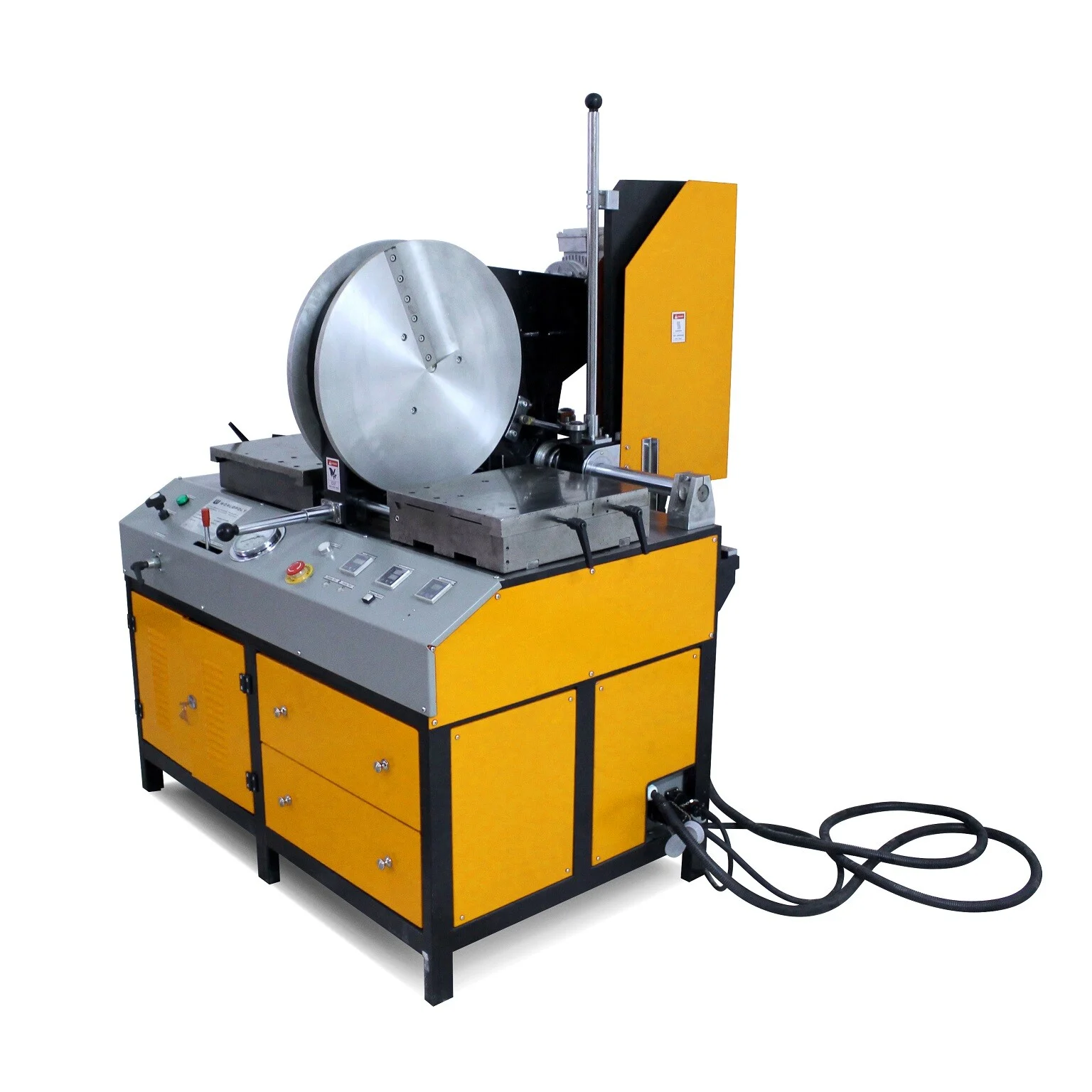

Hydraulically operated workshop machine for welding pipes and fittings in PE, PP and other thermoplastic materials from 315 - 90mm.
Details
- Welding range of 90 to 315mm to SDR 9 (PN20)
Included as standard:
- Segmented bend clamps for 90, 110, 125, 140, 160, 180, 200, 225, 250, 280 & 315mm
- Aluminium electric facing tool with current overload protection
- Electrohydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases
- PTFE coated heating plate with electronic temperature control (heating plate automatically separates from pipe ends after heating)
- Tool box including tools, bolts, selected spare parts, etc
- Optional tee, cross, branch and Y-clamps produce fittings diameter 90, 110, 125, 140, 160, 180, 200, 225, 250, 280 & 315mm
notes
HYDRAULICS
- German hydraulic seals
- Total cylinder section 12.56 cm²
ELECTRICS
- 230 volt 1 phase 50 Hz (7.3 kw 36 A)
- Alt. 380 volt 3 phase 50 Hz (7.3 kw 12 A)
- Optional 60 Hz available
WARRANTY
- 1 year warranty on parts
