FABRICATION315
Hydraulically operated workshop machine for welding pipes and fittings in PE, PP and other thermoplastic materials from 315 - 90mm.

FABRICATION315

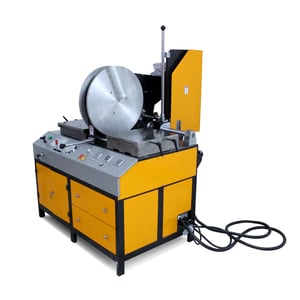

Hydraulically operated workshop machine for the butt-welding of pipes and fittings in PE, PP and other thermoplastic materials. Pivoting clamps allow for the fabrication of segmented bends of different radii.

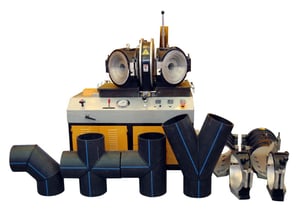

Optional clamps allow the production of bends from 90 to 315mm OD, 90 to 315mm 90 degree equal tees and crosses, and 45 and 60 degree branch tees 90mm to 315mm.
90 to 315mm
3.5" to 12"
WHAT'S INSIDE
GENERAL INCLUSIONS
- → Welding range of 90 to 315mm to SDR 9 (PN20)
- → 2 year warranty on parts
- → Included as standard (unless otherwise specified):
- ↳ Aluminium electric facing tool with current overload protection
- ↳ Electrohydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases
- ↳ PTFE coated heating plate with electronic temperature control (heating plate automatically separates from pipe ends after heating)
- ↳ Tool box including tools, bolts, selected spare parts, etc
CLAMP OPTIONS
- → Segmented bends range 90, 110, 125, 140, 160, 180, 200, 225, 250, 280 & 315mm
- → 90 degree equal tees and crosses range 90, 110, 125, 140, 160, 180, 200, 225, 250, 280 & 315mm
- → Optional clamps for 45 and 60 degree branch tees 90, 110, 125, 140, 160, 180, 200, 225, 250, 280 & 315mm
- → Optional narrow fittings clamp
- → Optional stub device
ELECTRICS
- → 230 volt 1 phase 50 Hz (7.3 kw 36 A)
- → Alt. 380 volt 3 phase 50 Hz (7.3 kw 12 A)
- → Alt. 400 volt 3 phase 50 Hz (8.3 kw 13.4 A)
- → Optional 60 Hz available
HYDRAULICS
- → German hydraulic seals
- → Total cylinder section 12.56 cm²
