Weldpoly_Field250

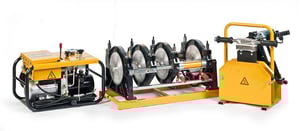

FIELD250

Hydraulically operated butt-welding machine for joining 250 - 50mm / 10 - 1.5" OD PE and PP pipes and fittings

Worldpoly_160_Butt_Welding_Machine
FIELD250

A hydraulic butt-welding machine designed for precision welding of PE and PP pipes and fittings from 50mm to 250mm OD. Engineered for both on-site and workshop applications, this machine combines durability with ease of use, making it the perfect choice for professionals who need reliability in every weld.

Manufactured with high-quality, pressure-cast aluminium components, the Field250 delivers exceptional strength without unnecessary weight. This ensures stability and precision, even when working with out-of-round pipes, while keeping the machine light enough for easy transport and handling.

50 to 250mm
1.5" to 10"

WHAT'S INSIDE

GENERAL INCLUSIONS
  • Welding range of 50 to 250mm to SDR 9 (PN20) according to DVS 2207-1, ISO 21307 and POP003 low-pressure specifications
  • 2 year warranty on parts
  • Included as standard (unless otherwise specified):
    • ↳ Main frame, including 4 light weight pressure-cast alloy main clamps of 250mm diameter
    • ↳ Removable cast Aluminium electric facing tool with current overload protection
    • ↳ Electrohydraulic pump with controls, and quick release hoses. Includes countdown timers for heating and cooling phases
    • ↳ PTFE coated heating plate with electronic temperature control (heating plate automatically separates from pipe ends after heating)
    • ↳ Stand for heating plate and facing tool
    • ↳ Tool box including tools, bolts, selected spare parts, etc
CLAMP OPTIONS
  • → Layer clamps: 250x225, 225x200, 200x180, 180x160, 160x140, 140x125, 125x110, 110x90, 90x75, 75x63 & 63x50mm
  • → 2-piece liners: 250x225, 250x200, 250x180, 250x160, 160x140, 160x125, 160x110, 160x90, 160x75, 160x63, 160x50mm
  • → Narrow clamps: 250x225, 250x200, 250x180, 250x160, 250x140, 250x125, 250x110, 250x90, 250x75, 250x63 & 250x50mm
  • → Stub end device for welding end fittings
ELECTRICS
  • → 230 volt 50/60 Hz 1 phase (4.35 kw 15.6A)
  • → Requires generator with a minimum output of 230 volt 5 KVA
    • ↳ We recommend you provide the full machine details to your generator supplier before purchase
HYDRAULICS
  • → German hydraulic seals
  • → Total cylinder section 11 cm²
  • → Maximum pump pressure 60 bar
